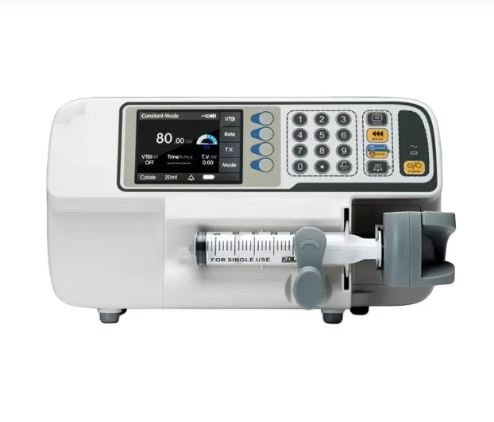

Single Channel Syringe Infusion Pump

The Single Channel Syringe Infusion Pump is a precision medical device designed for controlled and accurate intravenous drug delivery. Featuring a classic single-channel structure, this system supports multiple syringe brands through calibration and provides consistent infusion accuracy within ±2% after calibration.

With its dual CPU system, numeric keypad, and user-friendly interface, the pump is well suited for use in hospitals, clinics, and emergency care settings requiring reliable infusion management.

Category: Theatre/Surgical

Description
Reviews (0)

Key Features

High Infusion Accuracy
Software-based calibration ensures infusion accuracy within ±2%, supporting safe and precise medication delivery.

Open System Compatibility
Compatible with various syringe brands after proper calibration, offering flexibility for hospital supply management.

Wide Syringe Size Range
Supports 5 ml, 10 ml, 20 ml, 30 ml, 50 ml, and 60 ml syringes with automatic recognition.

Dual CPU Design
Enhanced system reliability and stable performance through dual-processor control architecture.

User-Friendly Interface
ATM-style interface with numeric keypad for intuitive operation and simplified parameter input.

Adjustable Safety Settings
Customizable occlusion sensitivity, alarm volume, and display brightness for adaptable clinical use.

Comprehensive Alarm System
Visual and audible alarms for occlusion, low battery, infusion completion, syringe displacement, and system errors.

Strong Battery Backup
Equipped with a 3000 mAh rechargeable lithium battery providing more than 9 hours of backup operation.

Compact & Lightweight
Space-saving design suitable for bedside use and patient transport.

Applications

Intensive Care Unit (ICU)
Neonatal Intensive Care Unit (NICU)
Pediatrics
Internal Medicine
Surgery
Obstetrics & Gynecology
Oncology
Emergency Department
Outpatient Infusion Centers

Technical Specifications

Specification	Details
Brand Name	sxwcht
Model Number	WCHT0150
Type	Single Channel Syringe Infusion Pump
Power Source	AC Power & Rechargeable Lithium Battery
Battery Capacity	3000 mAh (≥ 9 hours backup)
Infusion Accuracy	±2% (after calibration)
Syringe Sizes	5, 10, 20, 30, 50/60 ml (Auto-recognition)
Instrument Classification	Class II
Safety Classification	Class II, Type CF; IPX4
Quality Certification	MSDS
Safety Standard	GB/T 18830-2009
Dimensions	275 × 145 × 160 mm
Weight	2.1 kg
Material	Medical-Grade Plastic
Warranty	1 Year
After-Sales Service	Online Technical Support

Compliance & Safety

Designed in accordance with relevant medical electrical equipment safety standards. Suitable for clinical environments requiring controlled intravenous infusion.
