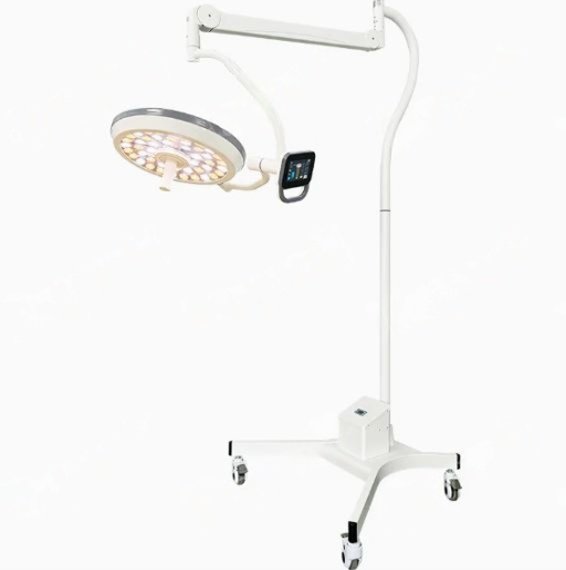

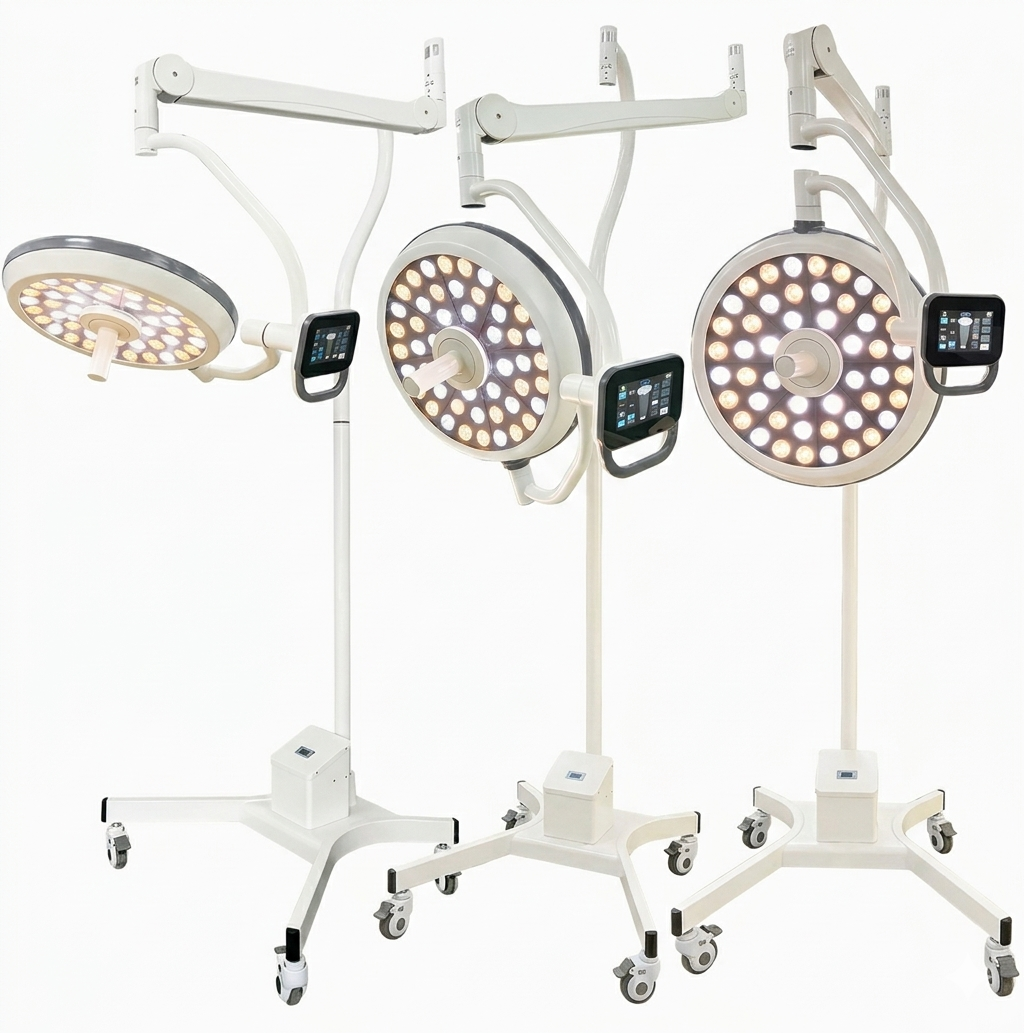

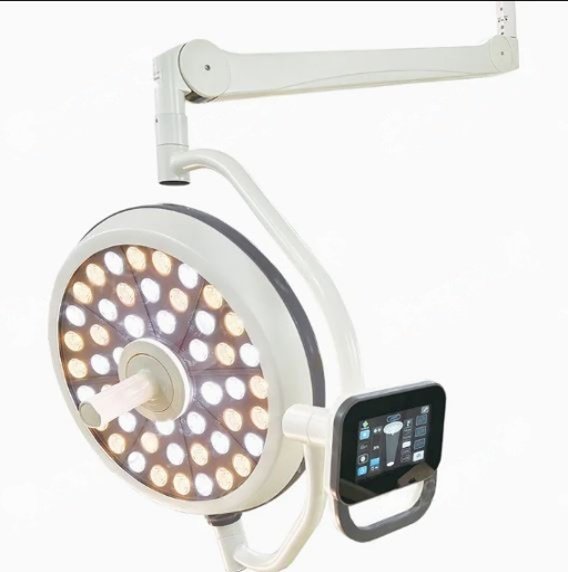

LED Surgical Light

Equipped with a 500 mm lamp head and 48 LED light sources, this surgical light delivers powerful illumination of up to 140,000 lux. The stepless brightness adjustment allows users to fine-tune lighting intensity based on procedural requirements, while the adjustable color temperature range of 3500K to 5000K supports clear visibility and improved visual comfort.

The integrated battery system provides up to 6 hours of operating time, helping maintain lighting performance during transport or in situations where backup power is needed. A control display is included for convenient operation, and optional imaging accessories such as an external Sony camera system and 32-inch 4K monitor may be available depending on configuration.

With its practical mobile design, long LED lifespan, and reliable illumination output, the KS-500 is a strong choice for facilities seeking a flexible and modern surgical lighting solution.

Key Features

• Model: KS-500 Mobile with Battery
• Mobile LED surgical light for flexible use
• 500 mm lamp head
• Illumination up to 140,000 lux ±20%
• Stepless brightness adjustment
• Color temperature adjustable from 3500K to 5000K
• Color rendering index (Ra) ≥ 90
• 48 LED light sources
• Battery backup up to 6 hours
• LCD display for convenient control
• Single arm design for easy positioning
• LED lifespan up to 50,000 hours
• Optional Sony external camera system
• Optional 32-inch 4K monitor

Technical Specifications

• Product Type: LED Surgical Light
• Model Number: KS-500 Mobile with Battery
• Lamp Head Diameter: 500 mm
• Illumination: 140,000 lux ±20%
• Color Rendering Index (Ra): ≥ 90
• Color Temperature: 3500–5000K
• Power Voltage: 100–240V, 50/60Hz
• Power Consumption: 70VA
• Spot Diameter: 185 mm ±35 mm
• LED Lifetime: 50,000 hours
• Number of LEDs: 48
• Arm Type: Single arm
• Battery Backup Time: 6 hours
• Display: LCD
